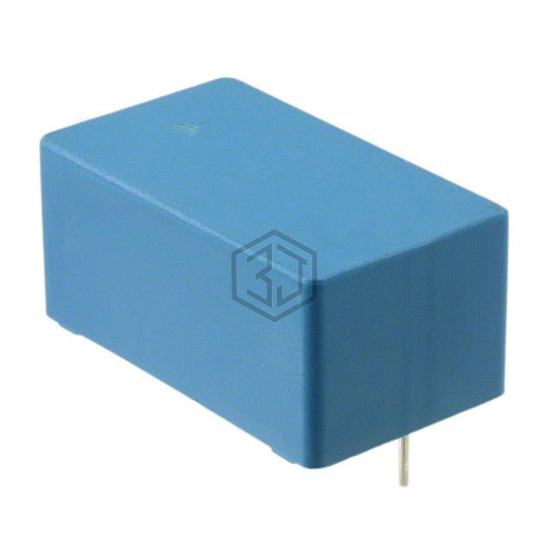

CAP FILM 8UF 10% 630VDC RADIAL
B32796T2805K is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 8UF 10% 630VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 630V, package / case Radial.
In Stock: 4,756
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 9 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.634" L x 0.945" W (41.50mm x 24.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | DC Link, DC Filtering; EMI, RFI Suppression |
| Ratings | - |
| Features | - |
B32796T2805K is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1847H58025KK2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8UF 10% 500VDC RADIAL | 97% | View |
| B32756G7805J000 | EPCOS - TDK Electronics | CAP FILM 8UF 5% 550VDC RADIAL | 97% | View |
| MKP1848580084K2 | Vishay Beyschlag/Draloric/BC Components | MKP 8UF 5% 800VDC RADIAL PITCH 2 | 96% | View |
| MABA024800KJL | Nichicon | FILM CAP BOXED RADIAL | 96% | View |
| EZP-Q33805LTA | Panasonic Electronic Components | CAP FILM 8UF 5% 330VAC RADIAL | 95% | View |
| BLH805K901A082 | Cornell Dubilier Electronics (CDE) | DC LINK, THB, 85/85, AEC-Q200 | 94% | View |
