CAP FILM 50UF 10% 800VDC RADIAL

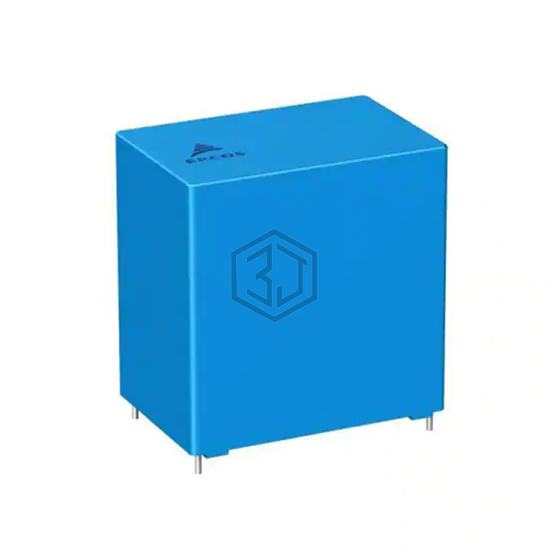

B32778H9506K000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 50UF 10% 800VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 800V, package / case Radial - 4 Leads.
In Stock: 7,196
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 50 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 800V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 5.5 mOhms |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 2.264" L x 1.496" W (57.50mm x 38.00mm) |
| Height - Seated (Max) | 2.264" (57.50mm) |
| Termination | PC Pins |
| Lead Spacing | 2.067" (52.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | AEC-Q200 |
| Features | Long Life |
B32778H9506K000 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EZP-V80506MTS | Panasonic Electronic Components | CAP FILM 50UF 10% 800V RADIAL | 100% | View |
| EZP-V80506MTB | Panasonic Electronic Components | CAP FILM 50UF 10% 800V RADIAL | 100% | View |
| MKP1848C65090JY2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 50UF 5% 900VDC RADIAL | 98% | View |
| MKP1848C65010JY5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 50UF 5% 1KVDC RADIAL | 96% | View |
| EZP-V60506MTS | Panasonic Electronic Components | CAP FILM 50UF 10% 600V RADIAL | 95% | View |
| MKP1848C65060JY2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 50UF 5% 600VDC RADIAL | 95% | View |
Submit your RFQ for B32778H9506K000 and get a quote within 24 hours.
