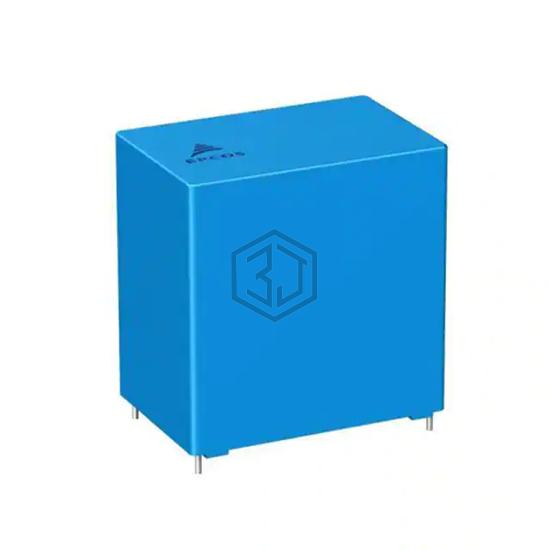

CAP FILM 50UF 5% 800VDC RADIAL
B32778H9506J000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 50UF 5% 800VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 800V, package / case Radial - 4 Leads.
In Stock: 8,645
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 50 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 800V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 5.5 mOhms |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 2.264" L x 1.496" W (57.50mm x 38.00mm) |
| Height - Seated (Max) | 2.264" (57.50mm) |
| Termination | PC Pins |
| Lead Spacing | 2.067" (52.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | AEC-Q200 |
| Features | Long Life |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1848650704Y5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 50UF 5% 700VDC RADIAL | 98% | View |
| DCP4N055009FD4KSSD | WIMA | CAP FILM 50UF 10% 900VDC RAD | 98% | View |
| B32778G9506K000 | EPCOS - TDK Electronics | CAP FILM 50UF 10% 900VDC RADIAL | 98% | View |
| MKP1848C65050JP5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 50UF 5% 500VDC RADIAL | 92% | View |
| MKP1848S65050JY6B | Vishay Beyschlag/Draloric/BC Components | CAP FILM 50UF 5% 500VDC RADIAL | 92% | View |
| B32758G2506J000 | EPCOS - TDK Electronics | CAP FILM 50UF 5% 500VDC RADIAL | 92% | View |
Submit your RFQ for B32778H9506J000 and get a quote within 24 hours.
