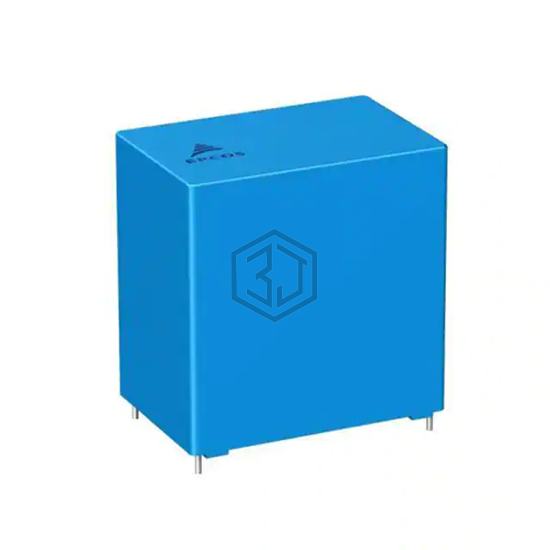

CAP FILM 56UF 10% 700VDC RADIAL
B32778H8566K000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 56UF 10% 700VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 700V, package / case Radial - 4 Leads.
In Stock: 78
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 700V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 5.5 mOhms |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 2.264" L x 1.378" W (57.50mm x 35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Termination | PC Pins |
| Lead Spacing | 2.067" (52.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | AEC-Q200 |
| Features | Long Life |
Submit your RFQ for B32778H8566K000 and get a quote within 24 hours.
