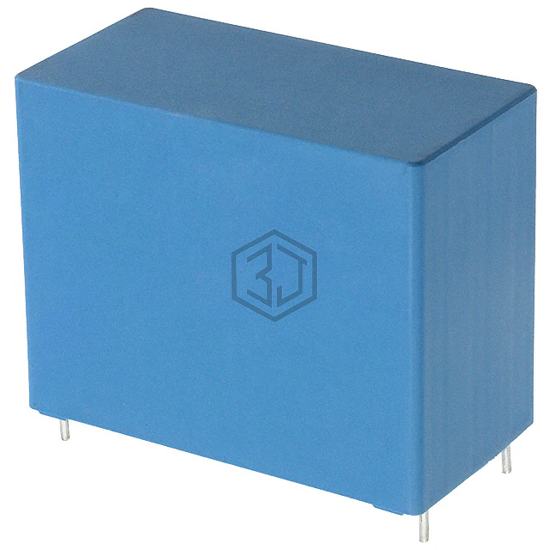

CAP FILM 30UF 5% 1.1KVDC RADIAL
B32778G0306J000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 30UF 5% 1.1KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 1100V (1.1kV), package / case Radial.
In Stock: 1,855
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 30 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 8.2 mOhms |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 2.264" L x 1.181" W (57.50mm x 30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Termination | PC Pins |
| Lead Spacing | 2.067" (52.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | Long Life |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EZP-V1B306MTT | Panasonic Electronic Components | CAP FILM 30UF 10% 1100V RADIAL | 100% | View |
| MKP1848C63090JY2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 30UF 5% 900VDC RADIAL | 96% | View |
| B32776Z5306K000 | EPCOS - TDK Electronics | FILM CAP MKP DC FILTERING - 600V | 89% | View |
| MKP1847H63025KY2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 30UF 10% 500VDC RADIAL | 86% | View |
| MKP1848630454P2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 30UF 5% 450VDC RADIAL | 84% | View |
| MKP385630025JPM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 30UF 5% 250VDC RADIAL | 74% | View |
