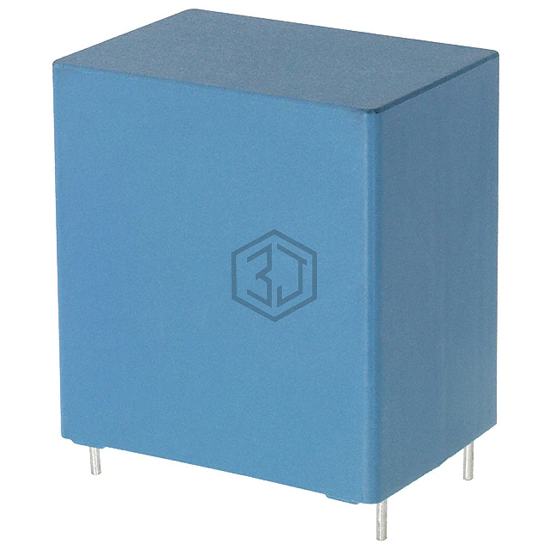

CAP FILM 10UF 5% 1.3KVDC RADIAL
B32776G1106J000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 10UF 5% 1.3KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 1300V (1.3kV), package / case Radial.
In Stock: 6,226
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1300V (1.3kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 6.5 mOhms |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.654" L x 1.102" W (42.00mm x 28.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | Long Life |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1848610704K2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10UF 5% 700VDC RADIAL | 89% | View |
| C4AF1BW5100T3FK | KEMET | FILM, POWER, METALLIZED POLYPROP | 83% | View |
| MKP1848S61050JP4C | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10UF 5% 500VDC RADIAL | 83% | View |
| MKP1847H61025KP2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10UF 10% 500VDC RADIAL | 83% | View |
| BLH106K451A052 | Cornell Dubilier Electronics (CDE) | DC LINK, THB, 85/85, AEC-Q200 | 81% | View |
| MKP385E61040KPM4T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10UF 400VDC RAD | 79% | View |
Submit your RFQ for B32776G1106J000 and get a quote within 24 hours.
