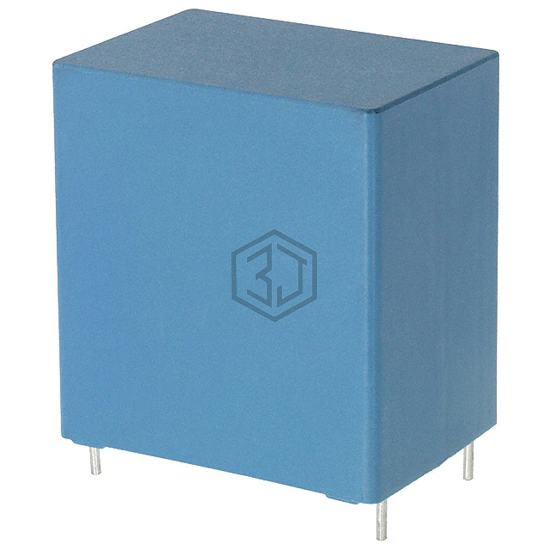

CAP FILM 12UF 5% 1.1KVDC RADIAL
B32776G0126J000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 12UF 5% 1.1KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 1100V (1.1kV), package / case Radial.
In Stock: 7,645
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 12 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 6.5 mOhms |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.634" L x 0.787" W (41.50mm x 20.00mm) |
| Height - Seated (Max) | 1.555" (39.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | Long Life |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EZP-V80126LTU | Panasonic Electronic Components | CAP FILM 12UF 10% 800V RADIAL | 94% | View |
| MKP1848C61280JK2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 12UF 5% 800VDC RADIAL | 94% | View |
| MKP1847H61235KY5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 12UF 10% 700VDC RADIAL | 92% | View |
| BLH126K601A072 | Cornell Dubilier Electronics (CDE) | DC LINK, THB, 85/85, AEC-Q200 | 89% | View |
| MKP1848C61260JK2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 12UF 5% 600VDC RADIAL | 89% | View |
| MKP1848C61250JK2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 12UF 5% 500VDC RADIAL | 86% | View |
Submit your RFQ for B32776G0126J000 and get a quote within 24 hours.
