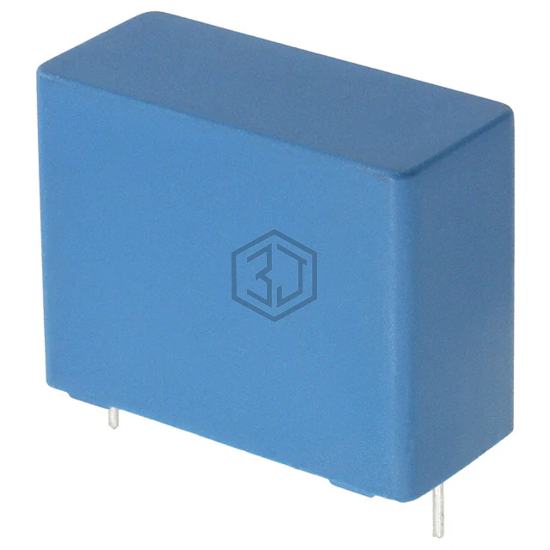

CAP FILM 14UF 10% 1.3KVDC RADIAL
B32776E1146K000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 14UF 10% 1.3KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 1300V (1.3kV), package / case Radial.
In Stock: 2,208
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 14 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1300V (1.3kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 5 mOhms |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.654" L x 1.181" W (42.00mm x 30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | Long Life |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32716H2146J000 | EPCOS - TDK Electronics | MKP DC FILTERING - 1200VDC, 14F | 99% | View |
| EZP-V80146LTA | Panasonic Electronic Components | CAP FILM 14UF 10% 800V RADIAL | 91% | View |
| MKP385614025JPM4T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 14UF 5% 250VDC RADIAL | 71% | View |
| MKP385614016JPM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 14UF 5% 160VDC RADIAL | 71% | View |
| MKP385614016JPP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 14UF 5% 160VDC RADIAL | 71% | View |
| MKP385614016JPI2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 14UF 5% 160VDC RADIAL | 71% | View |
Submit your RFQ for B32776E1146K000 and get a quote within 24 hours.
