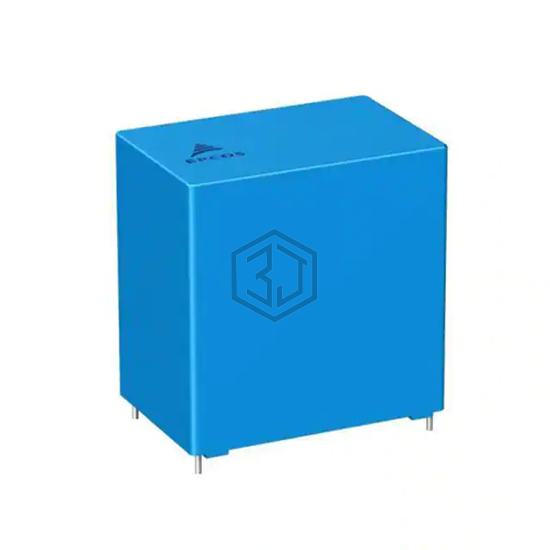

CAP FILM 4.7UF 10% 700VDC RAD
B32774H8475K000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 4.7UF 10% 700VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 700V, package / case Radial.
In Stock: 6,249
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 700V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 15.7 mOhms |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.591" W (31.50mm x 15.00mm) |
| Height - Seated (Max) | 0.965" (24.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | AEC-Q200 |
| Features | Long Life |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECW-FD2J475KC | Panasonic Electronic Components | CAP FILM 4.7UF 10% 630VDC RADIAL | 98% | View |
| R60MR44705040K | KEMET | CAP FILM 4.7UF 10% 400VDC RAD | 90% | View |
| BFC246854475 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4.7UF 5% 250VDC RADIAL | 82% | View |
| ECQ-E2475JBB | Panasonic Electronic Components | CAP FILM 4.7UF 5% 250VDC RADIAL | 82% | View |
| R60DN44705030J | KEMET | CAP FILM 4.7UF 5% 63VDC RADIAL | 71% | View |
| BFC246852475 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4.7UF 5% 100VDC RADIAL | 71% | View |
Submit your RFQ for B32774H8475K000 and get a quote within 24 hours.
