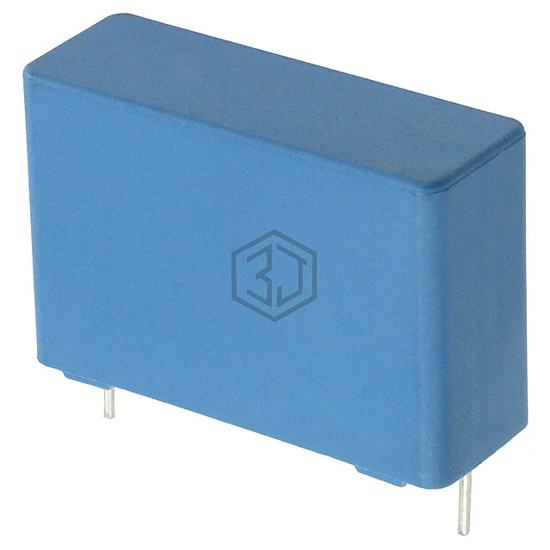

CAP FILM 3UF 5% 800VDC RADIAL
B32774D8305J000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 3UF 5% 800VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 800V, package / case Radial.
In Stock: 7,684
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 800V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 24.8 mOhms |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.433" W (31.50mm x 11.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | Long Life |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BLH305K701A022 | Cornell Dubilier Electronics (CDE) | DC LINK, THB, 85/85, AEC-Q200 | 98% | View |
| ECW-FG2J305P1 | Panasonic Electronic Components | CAP FILM 3UF 5% 630VDC RADIAL | 96% | View |
| ECW-FG1B305JA | Panasonic Electronic Components | CAP FILM 3UF 5% 1.1KVDC RADIAL | 94% | View |
| ECW-FG1B305J | Panasonic Electronic Components | CAP FILM 3UF 5% 1.1KVDC RADIAL | 94% | View |
| MKP1847H53025KK2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3UF 10% 500VDC RADIAL | 92% | View |
| MKP385530125JYM5T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3UF 5% 1.25KVDC RADIAL | 92% | View |
Submit your RFQ for B32774D8305J000 and get a quote within 24 hours.
