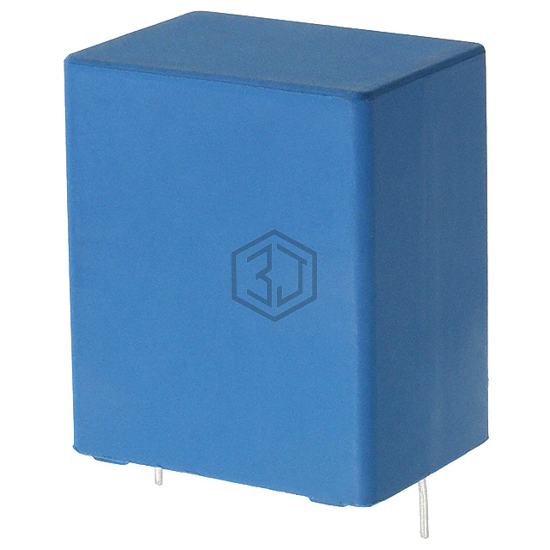

CAP FILM 5UF 5% 1.3KVDC RADIAL
B32774D1505J000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 5UF 5% 1.3KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 1300V (1.3kV), package / case Radial.
In Stock: 8,584
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1300V (1.3kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 9.8 mOhms |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.866" W (31.50mm x 22.00mm) |
| Height - Seated (Max) | 1.437" (36.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | Long Life |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EFACA30J505E102LH | Eaton - Electronics Division | CAP FILM 5UF 5% 300VAC RAD | 100% | View |
| EFDKA1BJ505E102LH | Eaton - Electronics Division | CAP EFDKA 1100VDC 5UF J 2LEADS | 97% | View |
| MKP1848S55010JP2C | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5UF 5% 1KVDC RADIAL | 95% | View |
| C4AQIBU4500A1YJ | KEMET | CAP FILM 5UF 5% 800VDC RADIAL | 91% | View |
| MKP1848S55070JK2B | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5UF 5% 700VDC RADIAL | 89% | View |
| MKP1847H55031JP4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5UF 5% 630VDC RADIAL | 87% | View |
