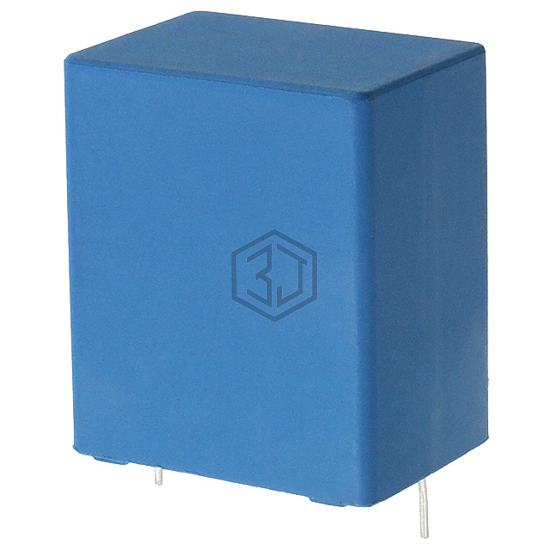

CAP FILM 7UF 5% 1.1KVDC RADIAL
B32774D0705J000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 7UF 5% 1.1KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 1100V (1.1kV), package / case Radial.
In Stock: 4,377
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 7 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 5.5 mOhms |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.866" W (31.50mm x 22.00mm) |
| Height - Seated (Max) | 1.437" (36.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | Long Life |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EFDKS1BJ705E134BH | Eaton - Electronics Division | CAP EFDKS 1100VDC 7UF J 4LEADS | 100% | View |
| MKP1847H57048KY5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 7UF 10% 1KVDC RADIAL | 98% | View |
| MKP1847H57048JY5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 7UF 5% 1KVDC RADIAL | 98% | View |
| MKP1847H57048JY2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 7UF 5% 1KVDC RADIAL | 98% | View |
| ECW-FG60705JA | Panasonic Electronic Components | CAP FILM 7UF 600VDC RADIAL | 89% | View |
| B32756C7705J000 | EPCOS - TDK Electronics | CAP FILM 7UF 5% 550VDC RADIAL | 88% | View |
