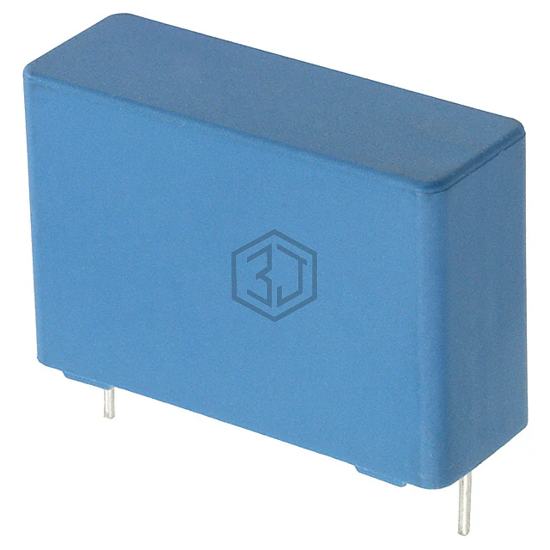

CAP FILM 2UF 10% 1.1KVDC RADIAL
B32774D0205K000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 2UF 10% 1.1KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 1100V (1.1kV), package / case Radial.
In Stock: 4,171
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 26.3 mOhms |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.492" W (31.50mm x 12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | Long Life |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32774D0205K189 | EPCOS - TDK Electronics | CAP FILM 2UF 10% 1.1KVDC RADIAL | 100% | View |
| MKP385520125JPM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2UF 5% 1.25KVDC RADIAL | 98% | View |
| MKP385520160JYP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2UF 5% 1.6KVDC RADIAL | 93% | View |
| MKP385520160JYI2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2UF 5% 1.6KVDC RADIAL | 93% | View |
| B32754C3205K | EPCOS - TDK Electronics | CAP FILM 2UF 10% 630VDC RADIAL | 90% | View |
| ECW-FG60205J | Panasonic Electronic Components | CAP FILM 2UF 600VDC RADIAL | 89% | View |
