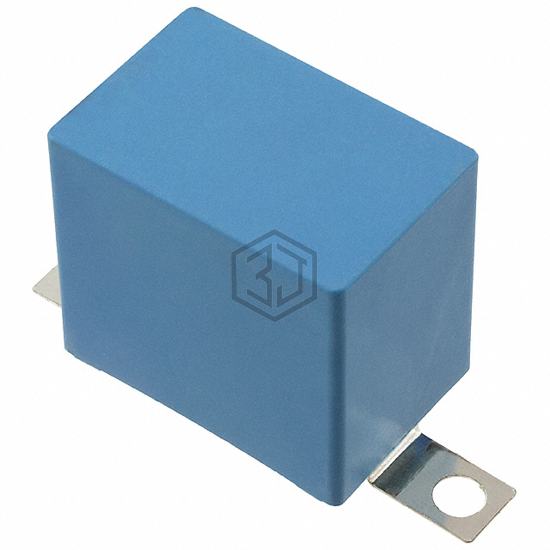

CAP FILM 0.047UF 10% 2KVDC SCREW
B32686S2473K563 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.047UF 10% 2KVDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 100°C, voltage rating - dc 2000V (2kV), package / case Rectangular Box.
In Stock: 1,980
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.047 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 30 mOhms |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.654" L x 0.630" W (42.00mm x 16.00mm) |
| Height - Seated (Max) | 1.122" (28.50mm) |
| Termination | Screw Terminals |
| Lead Spacing | 1.122" (28.50mm) |
| Applications | Snubber |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32686S2473K564 | EPCOS - TDK Electronics | CAP FILM 0.047UF 10% 2KVDC SCREW | 100% | View |
| MKP386M347200JT5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 5% 2KVDC SCREW | 95% | View |
| MKP386M347200JT7 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 5% 2KVDC SCREW | 95% | View |
| MKP386M347250JT7 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 5% 2.5KVDC SCRW | 90% | View |
| MKP386M347250JT5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 5% 2.5KVDC SCRW | 90% | View |
| MKP386M368250JT7 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 5% 2.5KVDC SCRW | 61% | View |
