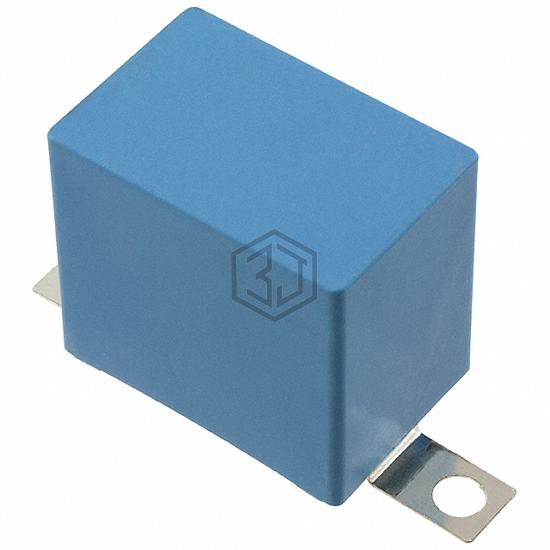

CAP FILM 0.022UF 10% 2KVDC SCREW
B32686S2223K564 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.022UF 10% 2KVDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 100°C, voltage rating - dc 2000V (2kV), package / case Rectangular Box.
In Stock: 3,508
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.022 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 70 mOhms |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.654" L x 0.472" W (42.00mm x 12.00mm) |
| Height - Seated (Max) | 0.886" (22.50mm) |
| Termination | Screw Terminals |
| Lead Spacing | 1.122" (28.50mm) |
| Applications | Snubber |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32686S2223K563 | EPCOS - TDK Electronics | CAP FILM 0.022UF 10% 2KVDC SCREW | 100% | View |
| SNFPX022207C1JJS00 | WIMA | SNUBBER FKP 0.022 F 4000 VDC 13X | 86% | View |
| SNFPT023306BD4MS00 | WIMA | SNUBBER FKP 0.033 UF 1600 VDC 11 | 61% | View |
| PWS2102150KG | Nichicon | 1000V, 0.015UF, 10 PERCENT, AXIA | 57% | View |
| SNFPX021507B1AJS00 | WIMA | SNUBBER FKP 0.015 UF 4000 VDC 11 | 55% | View |
Submit your RFQ for B32686S2223K564 and get a quote within 24 hours.
