CAP FILM 0.27UF 10% 1.6KVDC SCRW

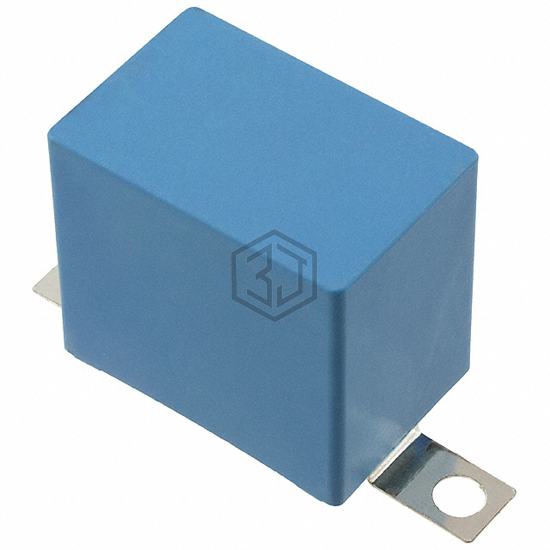

B32686S1274K562 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.27UF 10% 1.6KVDC SCRW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 100°C, voltage rating - dc 1600V (1.6kV), package / case Rectangular Box.
In Stock: 9,073
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.27 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 450V |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 7 mOhms |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.654" L x 1.181" W (42.00mm x 30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | 0.965" (24.50mm) |
| Applications | Snubber |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP386M427160JT5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 5% 1.6KVDC SCREW | 96% | View |
| MKP386M427160JT7 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 5% 1.6KVDC SCREW | 96% | View |
| MKP386M427200JT2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 5% 2KVDC SCREW | 91% | View |
| MKP386M427200JT1 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 5% 2KVDC SCREW | 91% | View |
| MKP386M427200JT4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 5% 2KVDC SCREW | 91% | View |
| MKP386M427200JT3 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 5% 2KVDC SCREW | 91% | View |
Submit your RFQ for B32686S1274K562 and get a quote within 24 hours.
