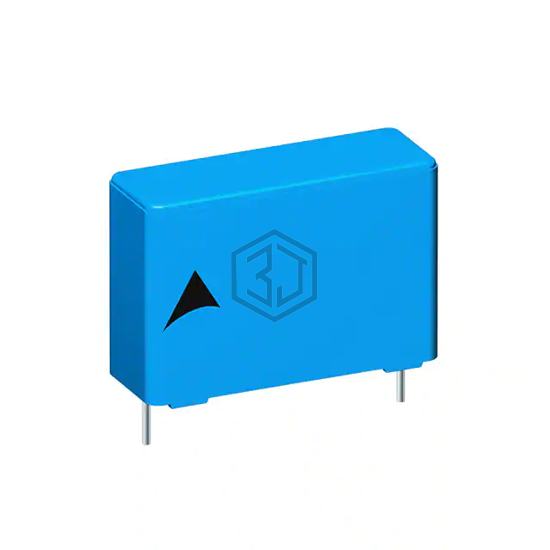

CAP FILM 10000PF 5% 2KVDC RADIAL
B32683A2103J000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 10000PF 5% 2KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 2000V (2kV), package / case Radial.
In Stock: 595
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 550V |
| Voltage Rating - DC | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.043" L x 0.335" W (26.50mm x 8.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT; Snubber |
| Ratings | - |
| Features | - |
Submit your RFQ for B32683A2103J000 and get a quote within 24 hours.
