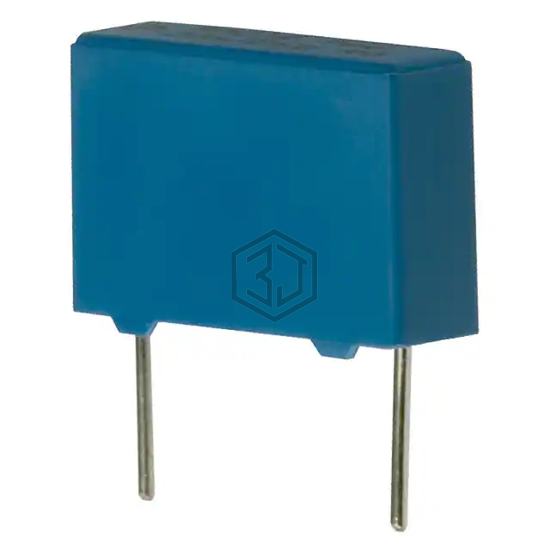

CAP FILM 4700PF 5% 1KVDC RADIAL
B32671L0472J289 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 4700PF 5% 1KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 110°C, voltage rating - dc 1000V (1kV), package / case Radial.
In Stock: 8,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.512" L x 0.157" W (13.00mm x 4.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | AEC-Q200 |
| Features | - |
Submit your RFQ for B32671L0472J289 and get a quote within 24 hours.
