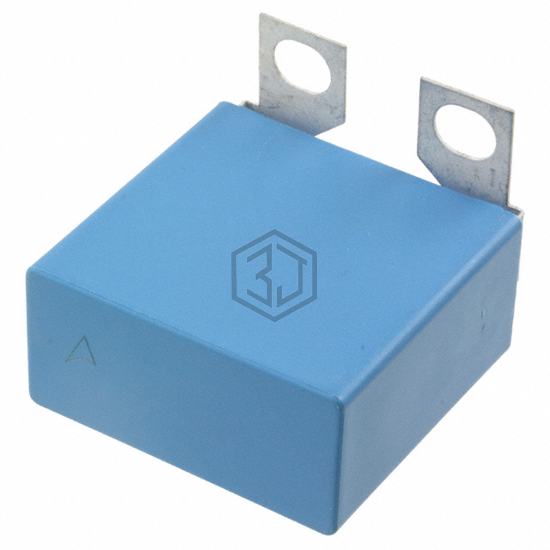

CAP FILM 0.68UF 1.25KVDC SCREW
B32656S7684K565 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.68UF 1.25KVDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 100°C, voltage rating - dc 1250V (1.25kV), package / case Rectangular Box.
In Stock: 2,594
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.68 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1250V (1.25kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 6 mOhms |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.654" L x 0.787" W (42.00mm x 20.00mm) |
| Height - Seated (Max) | 1.555" (39.50mm) |
| Termination | Screw Terminals |
| Lead Spacing | 0.866" (22.00mm) |
| Applications | Snubber |
| Ratings | AEC-Q200 |
| Features | Low ESL |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32656S7684K564 | EPCOS - TDK Electronics | CAP FILM 0.68UF 1.25KVDC SCREW | 100% | View |
| B32656S7684J566 | EPCOS - TDK Electronics | CAP FILM 0.68UF 5% 1.25KVDC SCRW | 100% | View |
| MKP386M468100JT5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 5% 1KVDC SCREW | 97% | View |
| MKP386M468160JT6 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 5% 1.6KVDC SCREW | 94% | View |
| MKP386M468160JT8 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 5% 1.6KVDC SCREW | 94% | View |
| MKP386M468160JT2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 5% 1.6KVDC SCREW | 94% | View |
Submit your RFQ for B32656S7684K565 and get a quote within 24 hours.
