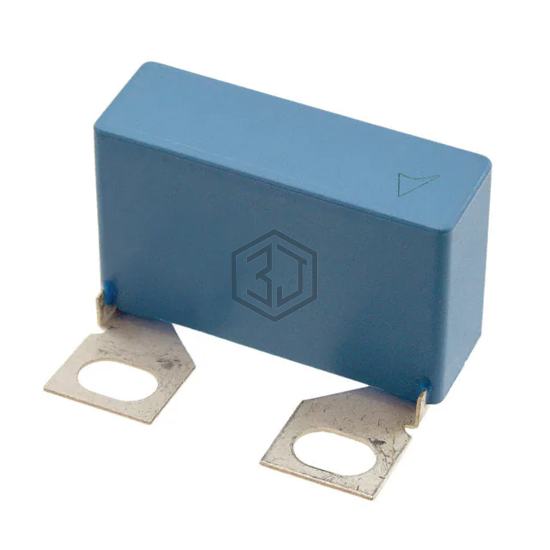

CAP FILM 0.1UF 5% 2KVDC SCREW
B32656S2104J563 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.1UF 5% 2KVDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 100°C, voltage rating - dc 2000V (2kV), package / case Rectangular Box.
In Stock: 8,235
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.1 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 800V |
| Voltage Rating - DC | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 15 mOhms |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.654" L x 0.551" W (42.00mm x 14.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | 2.244" (57.00mm) |
| Applications | Snubber |
| Ratings | AEC-Q200 |
| Features | Low ESL |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32656S2104K563 | EPCOS - TDK Electronics | CAP FILM 0.1UF 10% 2KVDC SCREW | 100% | View |
| B32656S2104K564 | EPCOS - TDK Electronics | CAP FILM 0.1UF 10% 2KVDC SCREW | 100% | View |
| B32656S2104J564 | EPCOS - TDK Electronics | CAP FILM 0.1UF 5% 2KVDC SCREW | 100% | View |
| B32656S2104K565 | EPCOS - TDK Electronics | CAP FILM 0.1UF 10% 2KVDC SCREW | 100% | View |
| MKP386M410200JT7 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.1UF 5% 2KVDC SCREW | 98% | View |
| MKP386M410250JT5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.1UF 5% 2.5KVDC SCREW | 97% | View |
Submit your RFQ for B32656S2104J563 and get a quote within 24 hours.
