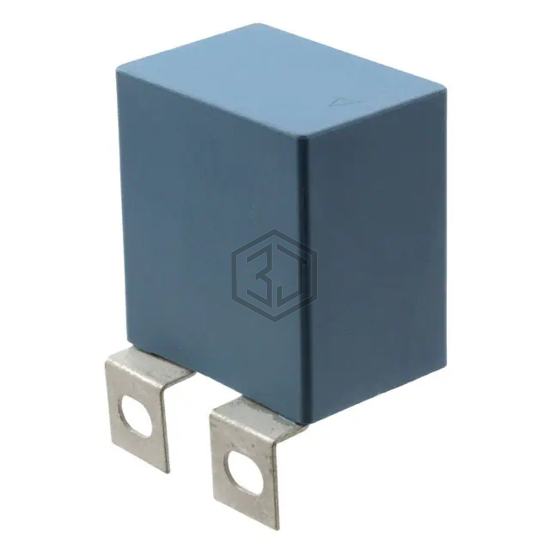

CAP FILM 0.68UF 10% 1.7KVDC SCRW
B32656S1684K561 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.68UF 10% 1.7KVDC SCRW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 100°C, voltage rating - dc 1700V (1.7kV), package / case Rectangular Box.
In Stock: 7,571
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.68 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 750V |
| Voltage Rating - DC | 1700V (1.7kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 6 mOhms |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | - |
| Height - Seated (Max) | - |
| Termination | Screw Terminals |
| Lead Spacing | 1.004" (25.50mm) |
| Applications | Snubber |
| Ratings | - |
| Features | Low ESL |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP386M468200YT7 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 5% 2KVDC SCREW | 97% | View |
| MKP386M468200YT1 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 5% 2KVDC SCREW | 97% | View |
| MKP386M468160JT6 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 5% 1.6KVDC SCREW | 96% | View |
| MKP386M468160JT8 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 5% 1.6KVDC SCREW | 96% | View |
| MKP386M468160JT2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 5% 1.6KVDC SCREW | 96% | View |
| MKP386M468250YT8 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 5% 2.5KVDC SCREW | 94% | View |
Submit your RFQ for B32656S1684K561 and get a quote within 24 hours.
