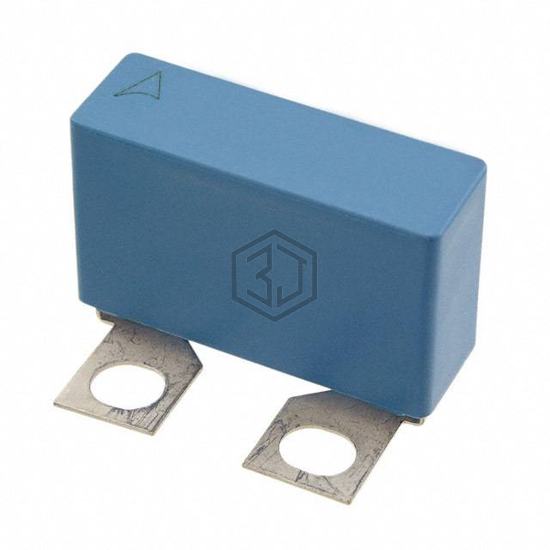

CAP FILM 0.47UF 10% 1KVDC SCREW
B32656S0474K565 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.47UF 10% 1KVDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 100°C, voltage rating - dc 1000V (1kV), package / case Rectangular Box.
In Stock: 3,953
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.47 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 480V |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 10 mOhms |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.654" L x 0.551" W (42.00mm x 14.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | 0.866" (22.00mm) |
| Applications | Snubber |
| Ratings | AEC-Q200 |
| Features | Low ESL |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32656S0474K564 | EPCOS - TDK Electronics | CAP FILM 0.47UF 10% 1KVDC SCREW | 100% | View |
| MKP386M447085JT5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.47UF 5% 850VDC SCREW | 97% | View |
| B32686S0474J562 | EPCOS - TDK Electronics | CAP FILM 0.47UF 5% 1KVDC SCREW | 97% | View |
| B32656S7474J565 | EPCOS - TDK Electronics | CAP FILM 0.47UF 5% 1.25KVDC SCRW | 96% | View |
| B32656S7474J566 | EPCOS - TDK Electronics | CAP FILM 0.47UF 5% 1.25KVDC SCRW | 96% | View |
| MKP386M447070JT7 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.47UF 5% 700VDC SCREW | 93% | View |
Submit your RFQ for B32656S0474K565 and get a quote within 24 hours.
