CAP FILM 0.22UF 5% 1.25KVDC RAD

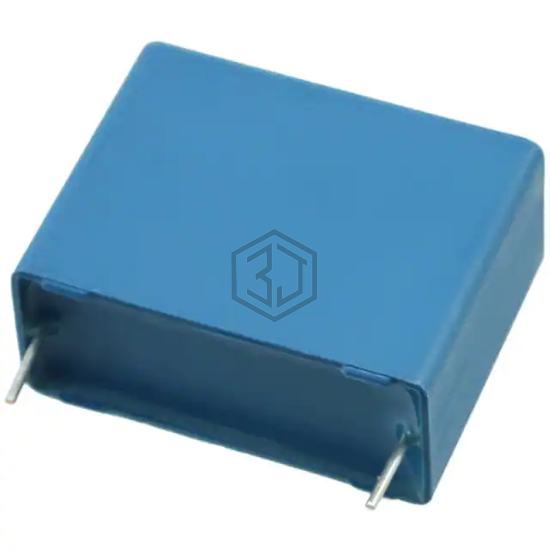

B32654A7224J189 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.22UF 5% 1.25KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 1250V (1.25kV), package / case Radial.
In Stock: 7,412
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.22 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1250V (1.25kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.551" W (31.50mm x 14.00mm) |
| Height - Seated (Max) | 0.965" (24.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT |
| Ratings | AEC-Q200 |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1840422636 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 20% RADIAL | 100% | View |
| R73QR32204030J | KEMET | CAP FILM METAL RAD POLYPROP | 94% | View |
| PHE840ED6220MD13R06L2 | KEMET | 220NF3 20%V | 86% | View |
| F1772SX242231MFPB0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 20% 630VDC RAD | 84% | View |
| B32529D3224K000 | EPCOS - TDK Electronics | CAP FILM 0.22UF 10% 250VDC RAD | 62% | View |
| MKT1813422256G | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 20% 250VDC AXIAL | 62% | View |
Submit your RFQ for B32654A7224J189 and get a quote within 24 hours.
