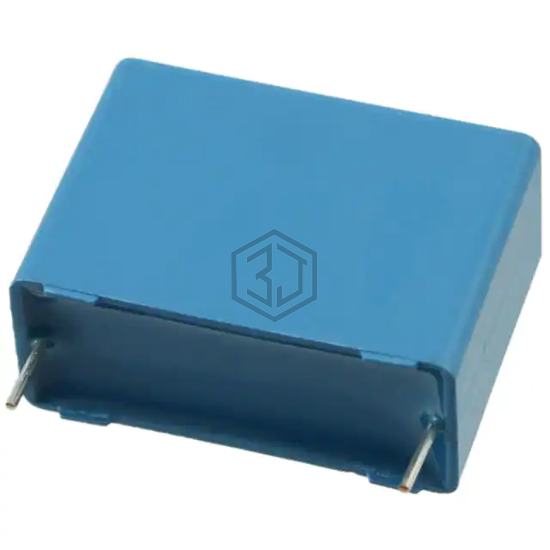

CAP FILM 0.033UF 5% 2KVDC RADIAL
B32654A2333J000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.033UF 5% 2KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 2000V (2kV), package / case Radial.
In Stock: 4,158
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.033 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.531" W (31.50mm x 13.50mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT |
| Ratings | AEC-Q200 |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1841333204M | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 5% 2KVDC RADIAL | 100% | View |
| MKP1841333135M | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 10% 1.6KVDC RAD | 96% | View |
| MKP1840333134M | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 5% 1.6KVDC RAD | 95% | View |
| MKP1841333104 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 5% 1KVDC RADIAL | 88% | View |
| BFC233840333 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 20% 800VDC RAD | 76% | View |
| F339MX233331JCA2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 5% 630VDC RAD | 73% | View |
Submit your RFQ for B32654A2333J000 and get a quote within 24 hours.
