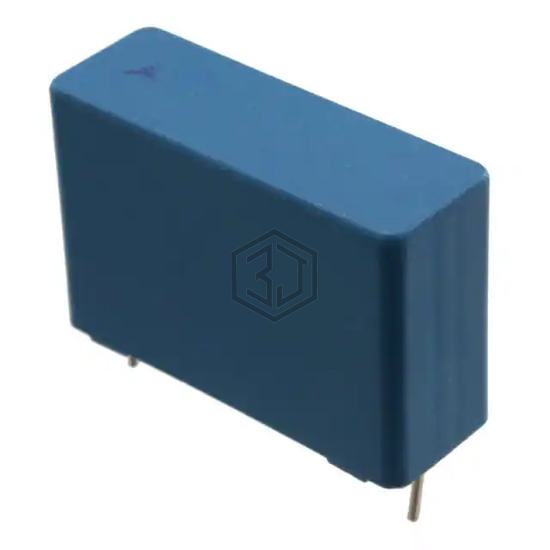

CAP FILM 0.068UF 5% 1.6KVDC RAD
B32654A1683J189 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.068UF 5% 1.6KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 1600V (1.6kV), package / case Radial.
In Stock: 5,705
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.068 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.433" W (31.50mm x 11.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT |
| Ratings | AEC-Q200 |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKS4S026805F00KJ00 | WIMA | CAP FILM 0.068UF 10% 1.5KVDC RAD | 96% | View |
| MKP1840368104M | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 5% 1KVDC RADIAL | 94% | View |
| F1778368M2D0W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 20% 630VDC RAD | 81% | View |
| MKP1845368406 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 20% 400VDC AXL | 70% | View |
| B32621A3683K289 | EPCOS - TDK Electronics | CAP FILM 0.068UF 10% 250VDC RAD | 60% | View |
| B32529C0683J000 | EPCOS - TDK Electronics | CAP FILM 0.068UF 5% 63VDC RADIAL | 56% | View |
Submit your RFQ for B32654A1683J189 and get a quote within 24 hours.
