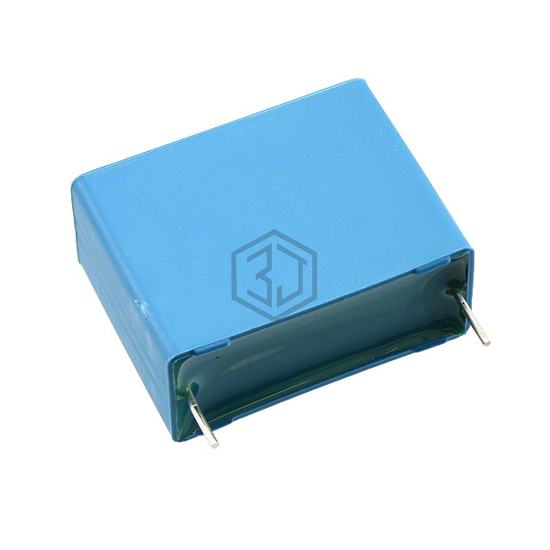

CAP FILM 0.1UF 10% 1.6KVDC RAD
B32654A1104K000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.1UF 10% 1.6KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 1600V (1.6kV), package / case Radial.
In Stock: 172
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.1 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.551" W (31.50mm x 14.00mm) |
| Height - Seated (Max) | 0.965" (24.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT |
| Ratings | AEC-Q200 |
| Features | - |
