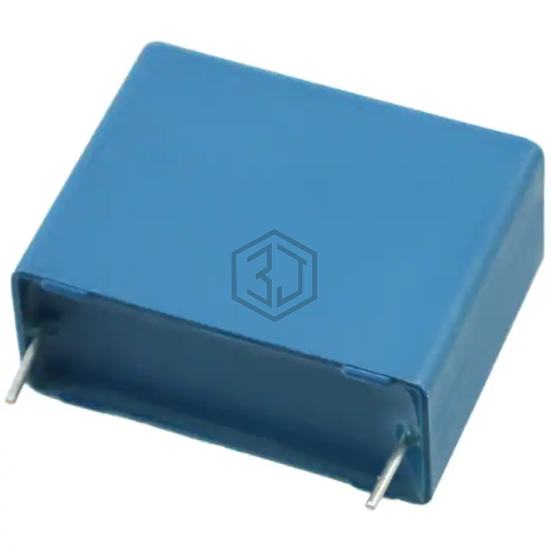

CAP FILM 0.47UF 10% 1KVDC RADIAL
B32654A0474K000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.47UF 10% 1KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 1000V (1kV), package / case Radial.
In Stock: 1,507
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.47 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.551" W (31.50mm x 14.00mm) |
| Height - Seated (Max) | 0.965" (24.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT |
| Ratings | AEC-Q200 |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32653A6474K289 | EPCOS - TDK Electronics | CAP FILM 0.47UF 10% 630VDC RAD | 94% | View |
| MKP4O134706D00KSSD | WIMA | CAP FILM 0.47UF 10% 1KVDC RAD | 94% | View |
| F1778447M2F0W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.47UF 20% 630VDC RAD | 91% | View |
| MKP385447125JKI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.47UF 5% 1.25KVDC RAD | 89% | View |
| B32522N6474K289 | EPCOS - TDK Electronics | CAP FILM 0.47UF 10% 450VDC RAD | 86% | View |
| MKP385447040JKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.47UF 5% 400VDC RADIAL | 84% | View |
Submit your RFQ for B32654A0474K000 and get a quote within 24 hours.
