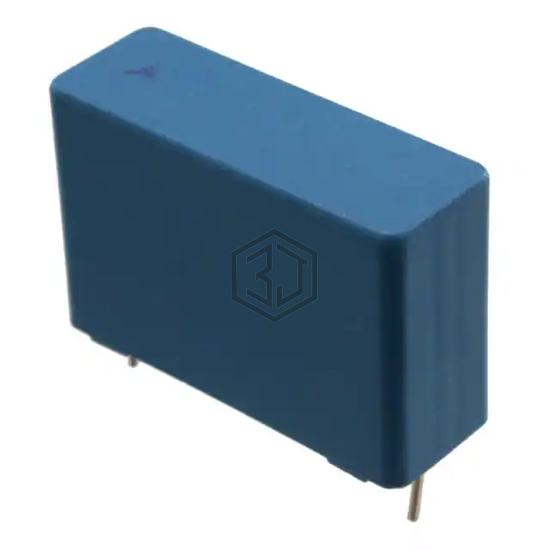

CAP FILM 0.22UF 5% 1KVDC RADIAL
B32654A0224J000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.22UF 5% 1KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 1000V (1kV), package / case Radial.
In Stock: 6,646
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.22 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.433" W (31.50mm x 11.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT |
| Ratings | AEC-Q200 |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32672L6224J000 | EPCOS - TDK Electronics | 220NF 5% 630V MKP WOUND BOXED | 94% | View |
| F339X142233MIM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 20% 800VDC RAD | 93% | View |
| F339MX242231MIP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 20% 630VDC RAD | 91% | View |
| MKP385422250JPI4T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 5% 2.5KVDC RAD | 70% | View |
| BFC2370EC224 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 5% 250VDC RADIAL | 62% | View |
| BFC237221224 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 10% 100VDC RAD | 59% | View |
