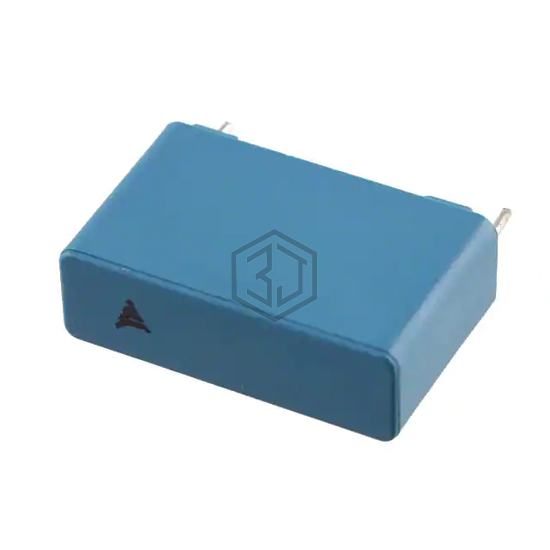

CAP FILM 4700PF 10% 2KVDC RADIAL
B32653A8472K000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 4700PF 10% 2KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 2000V (2kV), package / case Radial.
In Stock: 4,952
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 pF |
| Tolerance | ±10% |
| Voltage Rating - AC | 1000V (1kV) |
| Voltage Rating - DC | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.043" L x 0.335" W (26.50mm x 8.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT |
| Ratings | AEC-Q200 |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP385247200JC02Z0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 5% 2KVDC RADIAL | 95% | View |
| F339X124733KDI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 10% 800VDC RAD | 72% | View |
| MKP385247085JD02G0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 5% 850VDC RADIAL | 72% | View |
| BFC233620472 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 20% 630VDC RAD | 68% | View |
| 160472K630C-F | Cornell Dubilier Electronics (CDE) | CAP FILM 4700PF 10% 630VDC RAD | 63% | View |
| MKP383247063JDI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 5% 630VDC RADIAL | 63% | View |
