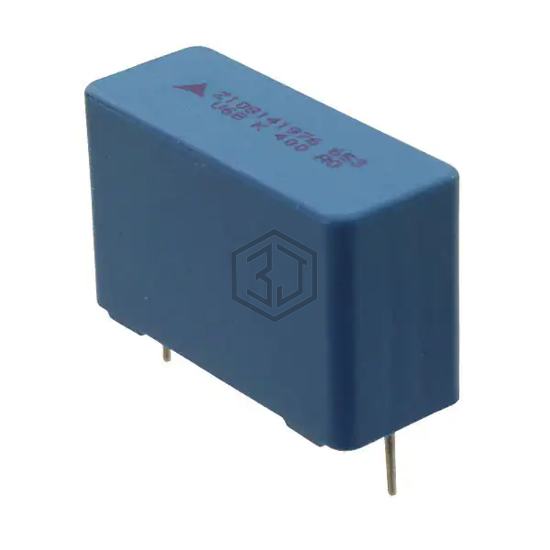

CAP FILM 0.56UF 5% 630VDC RADIAL
B32653A6564J000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.56UF 5% 630VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 630V, package / case Radial.
In Stock: 4,644
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.56 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.043" L x 0.433" W (26.50mm x 11.00mm) |
| Height - Seated (Max) | 0.807" (20.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT; Snubber |
| Ratings | AEC-Q200 |
| Features | Low ESL |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC246841564 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.56UF 5% 630VDC RADIAL | 100% | View |
| F461DH564K400R | KEMET | CAP FILM POLYPROP RAD | 92% | View |
| BFC237347564 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.56UF 10% 250VDC RAD | 81% | View |
| MKP385456160JPI2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.56UF 5% 1.6KVDC RAD | 76% | View |
| MKP385456016JII2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.56UF 5% 160VDC RADIAL | 70% | View |
| MKP385456016JC02Z0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.56UF 5% 160VDC RADIAL | 70% | View |
Submit your RFQ for B32653A6564J000 and get a quote within 24 hours.
