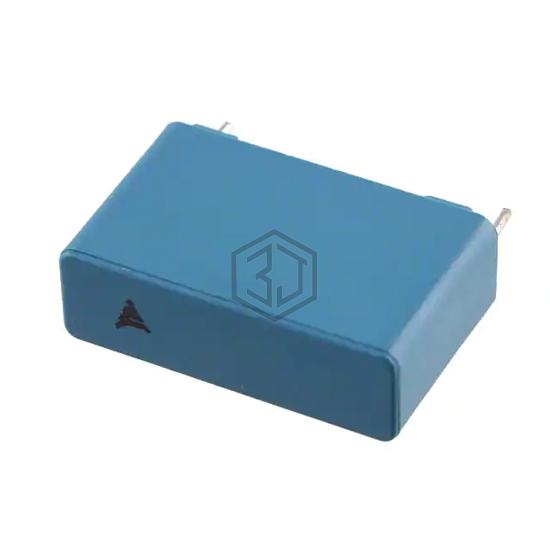

CAP FILM 6800PF 10% 2KVDC RADIAL
B32653A2682K000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 6800PF 10% 2KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 2000V (2kV), package / case Radial.
In Stock: 7,014
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 pF |
| Tolerance | ±10% |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.043" L x 0.335" W (26.50mm x 8.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT |
| Ratings | AEC-Q200 |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PHE450RB4680JR06 | KEMET | CAP FILM 6800PF 5% 1.6KVDC RAD | 96% | View |
| MKP385268160JC02H0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 6800PF 5% 1.6KVDC RAD | 94% | View |
| MKP1841268105G | Vishay Beyschlag/Draloric/BC Components | CAP FILM 6800PF 10% 1KVDC RADIAL | 88% | View |
| MKP385268125JDM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 6800PF 5% 1.25KVDC RAD | 87% | View |
| MKP385268100JDA2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 6800PF 5% 1KVDC RADIAL | 81% | View |
| BFC233669009 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 6800PF 20% 1KVDC RADIAL | 79% | View |
