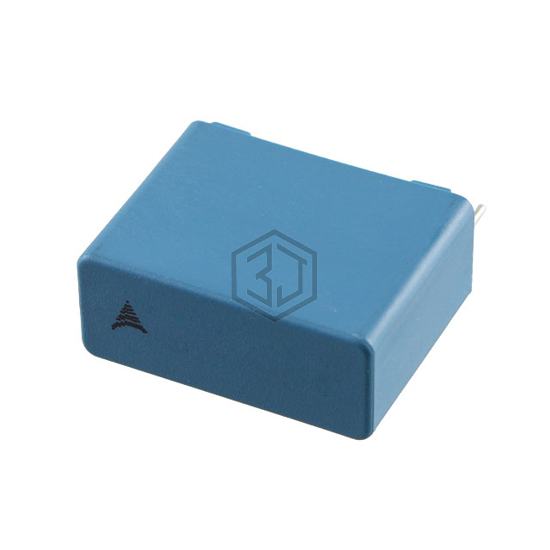

CAP FILM 0.056UF 5% 1.6KVDC RAD
B32653A1563J000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.056UF 5% 1.6KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 1600V (1.6kV), package / case Radial.
In Stock: 2,307
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.056 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.043" L x 0.472" W (26.50mm x 12.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT |
| Ratings | AEC-Q200 |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R74NI2560AA00J | KEMET | CAP FILM METAL RAD POLYPROP | 94% | View |
| BFC237524563 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.056UF 5% 1KVDC RADIAL | 90% | View |
| R75MF25604030J | KEMET | CAP FILM 0.056UF 5% 400VDC RAD | 68% | View |
| BFC237178563 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.056UF 10% 250VDC RAD | 62% | View |
| BFC237086563 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.056UF 5% 100VDC RAD | 56% | View |
| BFC2370EH563 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.056UF 10% 250VDC RAD | 56% | View |
