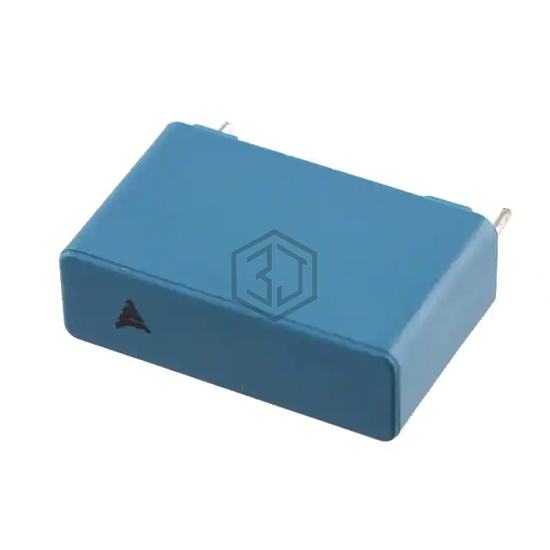

CAP FILM 0.022UF 5% 1.6KVDC RAD
B32653A1223J289 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.022UF 5% 1.6KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 1600V (1.6kV), package / case Radial.
In Stock: 2,828
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.022 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.043" L x 0.335" W (26.50mm x 8.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT |
| Ratings | AEC-Q200 |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1841322135 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 10% 1.6KVDC RAD | 96% | View |
| R75UI222050H3J | KEMET | CAP FILM 0.022UF 5% 2KVDC RADIAL | 92% | View |
| R75UN22204030J | KEMET | CAP FILM AUTO POLYPROP RAD | 92% | View |
| MKS4O122204B00JI00 | WIMA | CAP FILM 0.022UF 5% 1KVDC RADIAL | 90% | View |
| BFC236858223 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 10% 400VDC RAD | 70% | View |
| BFC236747223 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 5% 250VDC RAD | 62% | View |
