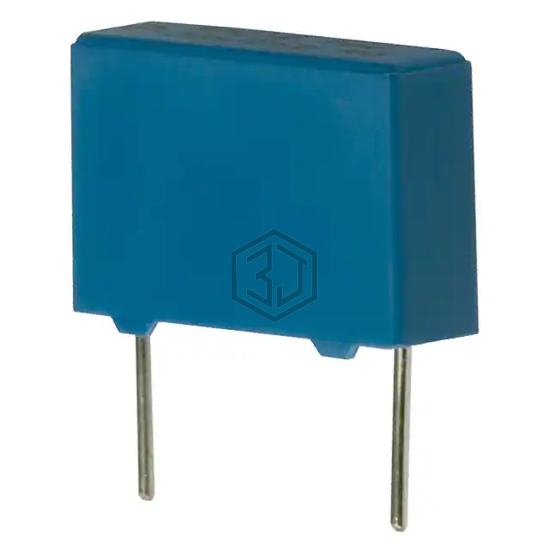

CAP FILM 2200PF 10% 1.25KVDC RAD
B32651A7222K189 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 2200PF 10% 1.25KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 1250V (1.25kV), package / case Radial.
In Stock: 313
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 pF |
| Tolerance | ±10% |
| Voltage Rating - AC | 450V |
| Voltage Rating - DC | 1250V (1.25kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.512" L x 0.157" W (13.00mm x 4.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT |
| Ratings | AEC-Q200 |
| Features | - |
Submit your RFQ for B32651A7222K189 and get a quote within 24 hours.
