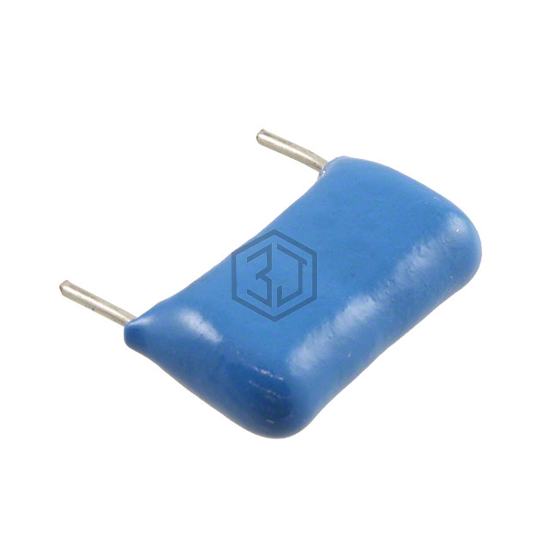

CAP FILM 4700PF 10% 1.25KVDC RAD
B32632A7472K is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 4700PF 10% 1.25KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 1250V (1.25kV), package / case Radial.
In Stock: 2,774
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 pF |
| Tolerance | ±10% |
| Voltage Rating - AC | 450V |
| Voltage Rating - DC | 1250V (1.25kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.748" L x 0.276" W (19.00mm x 7.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
B32632A7472K is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32632A7472K189 | EPCOS - TDK Electronics | CAP FILM 4700PF 10% 1.25KVDC RAD | 100% | View |
| BFC238342472 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 5% 1.4KVDC RAD | 97% | View |
| MKS4O114702C00MB00 | WIMA | CAP FILM 4700PF 20% 1KVDC RADIAL | 95% | View |
| MKP383247160JFP2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 5% 1.6KVDC RAD | 94% | View |
| MKT1813247634G | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 5% 630VDC AXIAL | 81% | View |
| DMT2D47K-F | Cornell Dubilier Electronics (CDE) | CAP FILM 4700PF 10% 250VDC RAD | 60% | View |
Submit your RFQ for B32632A7472K and get a quote within 24 hours.
