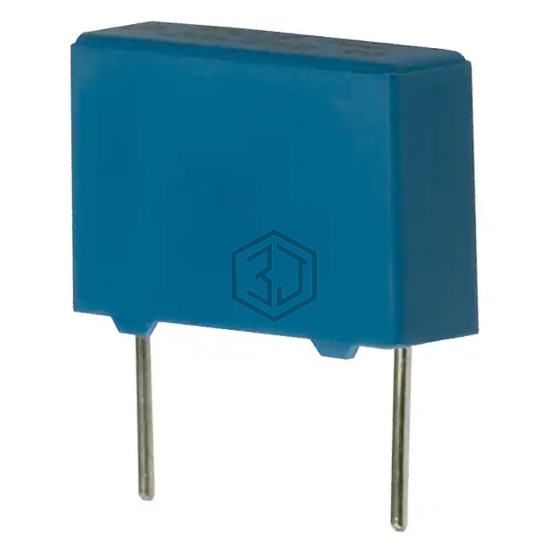

CAP FILM 3300PF 10% 1KVDC RADIAL
B32621A0332K289 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 3300PF 10% 1KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 1000V (1kV), package / case Radial.
In Stock: 6,297
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 pF |
| Tolerance | ±10% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.512" L x 0.157" W (13.00mm x 4.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| F339X123348KD02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3300PF 10% 1KVDC RADIAL | 99% | View |
| MKP385233160JDM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3300PF 5% 1.6KVDC RAD | 92% | View |
| MKT1818233635 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3300PF 10% 630VDC RAD | 82% | View |
| BFC236656332 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3300PF 5% 400VDC RADIAL | 76% | View |
| MKT1818233406W | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3300PF 20% 400VDC RAD | 75% | View |
| MKT1817233406W | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3300PF 20% 400VDC RAD | 75% | View |
Submit your RFQ for B32621A0332K289 and get a quote within 24 hours.
