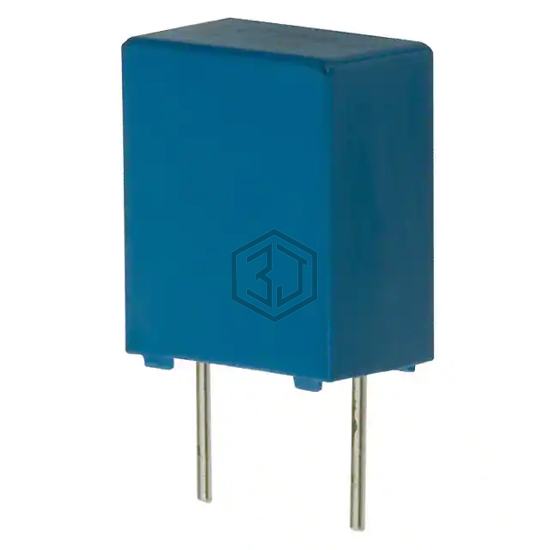

CAP FILM 4700PF 10% 1KVDC RADIAL
B32620J0472K000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 4700PF 10% 1KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 1000V (1kV), package / case Radial.
In Stock: 4,331
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 pF |
| Tolerance | ±10% |
| Voltage Rating - AC | 600V |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.406" L x 0.236" W (10.30mm x 6.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC238346472 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 5% 1.4KVDC RAD | 93% | View |
| BFC238554472 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 5% 1.6KVDC RAD | 92% | View |
| BFC233862472 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 20% 1KVDC RADIAL | 90% | View |
| 150472K1000DB | Cornell Dubilier Electronics (CDE) | CAP FILM 4700PF 10% 1KVDC AXIAL | 88% | View |
| MKP383247250JII2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 5% 2.5KVDC RAD | 82% | View |
| MKT1817247256G | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 20% 250VDC RAD | 63% | View |
Submit your RFQ for B32620J0472K000 and get a quote within 24 hours.
