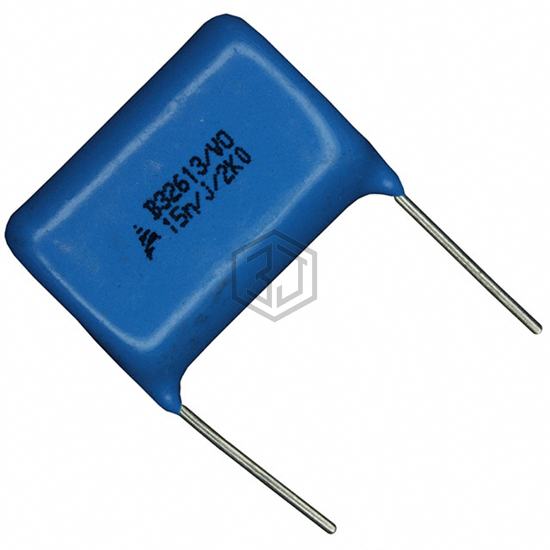

CAP FILM 0.015UF 5% 2KVDC RADIAL
B32613A2153J008 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.015UF 5% 2KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 2000V (2kV), package / case Radial.
In Stock: 9,088
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.015 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.043" L x 0.472" W (26.50mm x 12.00mm) |
| Height - Seated (Max) | 0.807" (20.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1840315205M | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 10% 2KVDC RAD | 100% | View |
| F462BK153K1K6Z | KEMET | CAP FILM POLYPROP RAD | 92% | View |
| F462DB153J1K6L | KEMET | CAP FILM POLYPROP RAD | 92% | View |
| F339MX231531KCA2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 10% 630VDC RAD | 73% | View |
| MKP385315063JB02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 5% 630VDC RAD | 68% | View |
| MKP385315040JCA2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 5% 400VDC RAD | 60% | View |
