CAP FILM 4700PF 5% 1.6KVDC RAD

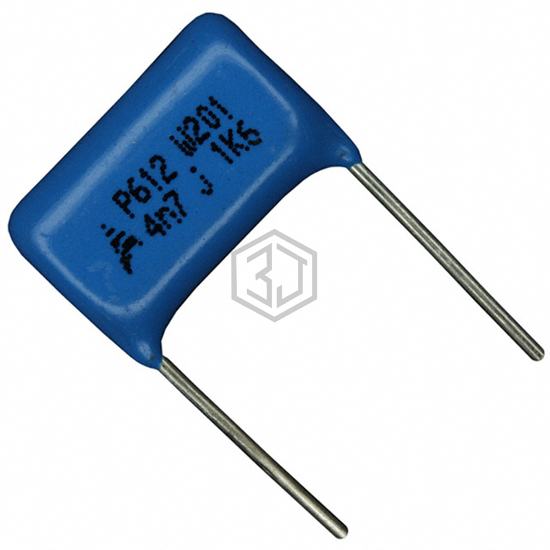

B32612J1472J008 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 4700PF 5% 1.6KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 1600V (1.6kV), package / case Radial.
In Stock: 9,296
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709" L x 0.295" W (18.00mm x 7.50mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
B32612J1472J008 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC238343472 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 5% 1.4KVDC RAD | 94% | View |
| BFC237524472 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 5% 1KVDC RADIAL | 86% | View |
| BFC233824472 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 20% 630VDC RAD | 76% | View |
| F339MX224731MC02G0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 20% 630VDC RAD | 76% | View |
| R75PF1470AA01J | KEMET | CAP FILM 4700PF 5% 630VDC RADIAL | 73% | View |
| 184472K630RBA-F | Cornell Dubilier Electronics (CDE) | CAP FILM 4700PF 10% 630VDC RAD | 71% | View |
Submit your RFQ for B32612J1472J008 and get a quote within 24 hours.
