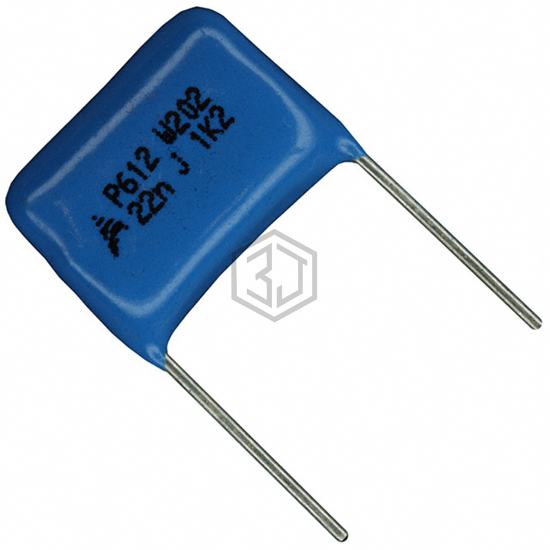

CAP FILM 0.022UF 5% 1.25KVDC RAD
B32612A7223J008 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.022UF 5% 1.25KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 1250V (1.25kV), package / case Radial.
In Stock: 1,325
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.022 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1250V (1.25kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709" L x 0.374" W (18.00mm x 9.50mm) |
| Height - Seated (Max) | 0.610" (15.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
B32612A7223J008 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R73PI22204000J | KEMET | CAP FILM 0.022UF 5% 630VDC RAD | 83% | View |
| BFC237514223 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 5% 630VDC RAD | 83% | View |
| BFC2370GB223 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 10% 630VDC RAD | 79% | View |
| MKP385322040JD02G0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 5% 400VDC RAD | 72% | View |
| BFC2370FM223 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 5% 400VDC RAD | 69% | View |
| MKT1818322254W | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 5% 250VDC RAD | 62% | View |
Submit your RFQ for B32612A7223J008 and get a quote within 24 hours.
