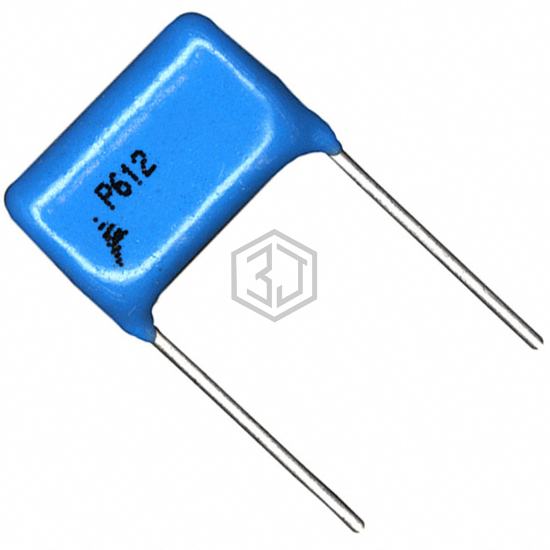

CAP FILM 4700PF 5% 2KVDC RADIAL
B32612A2472J008 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 4700PF 5% 2KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 2000V (2kV), package / case Radial.
In Stock: 4,117
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709" L x 0.374" W (18.00mm x 9.50mm) |
| Height - Seated (Max) | 0.709" (18.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
B32612A2472J008 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R76UI1470SE40J | KEMET | CAP FILM 4700PF 5% 2KVDC RADIAL | 100% | View |
| B32672L8472K189 | EPCOS - TDK Electronics | CAP FILM 4700PF 10% 2KVDC RADIAL | 100% | View |
| BFC238361472 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 5% 2KVDC RADIAL | 100% | View |
| BFC233826472 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 20% 630VDC RAD | 73% | View |
| BFC233627472 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 10% 630VDC RAD | 73% | View |
| BFC2370GM472 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 5% 630VDC RADIAL | 68% | View |
Submit your RFQ for B32612A2472J008 and get a quote within 24 hours.
