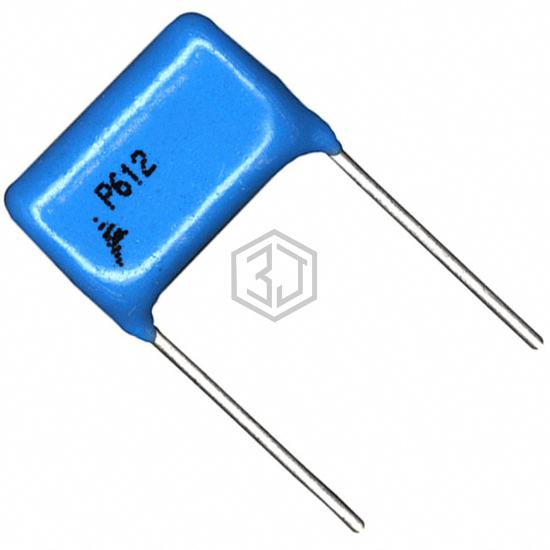

CAP FILM 0.015UF 5% 1.6KVDC RAD
B32612A1153J008 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.015UF 5% 1.6KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage rating - dc 1600V (1.6kV), package / case Radial.
In Stock: 2,520
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.015 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709" L x 0.394" W (18.00mm x 10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
B32612A1153J008 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| F462DB153K1K6Z | KEMET | CAP FILM POLYPROP RAD | 100% | View |
| R75TI21505030J | KEMET | CAP FILM AUTO POLYPROP RAD | 96% | View |
| F462BC153M1L2R | KEMET | CAP | 94% | View |
| MKP385315200JFM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 5% 2KVDC RADIAL | 92% | View |
| 153PPB102K | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.015UF 10% 1KVDC RAD | 91% | View |
| BFC237510153 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 5% 630VDC RAD | 80% | View |
Submit your RFQ for B32612A1153J008 and get a quote within 24 hours.
