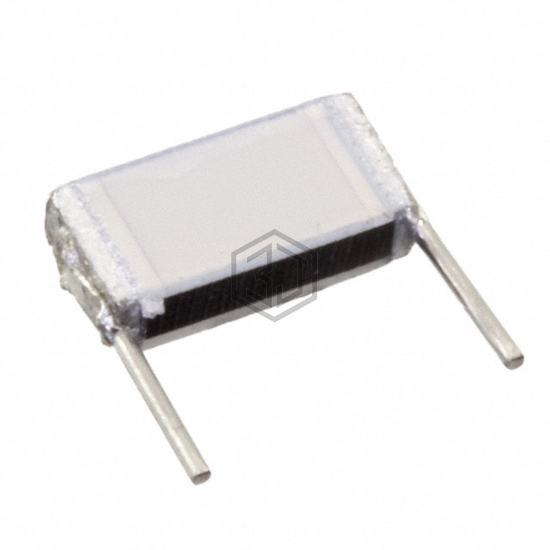

CAP FILM 2200PF 20% 1KVDC 2DIP
B32560J9222M000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 2200PF 20% 1KVDC 2DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage rating - dc 1000V (1kV), package / case 2-DIP.
In Stock: 4,497
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2200 pF |
| Tolerance | ±20% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 2-DIP |
| Size / Dimension | 0.354" L x 0.098" W (9.00mm x 2.50mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
B32560J9222M000 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKS4S012203C00KSSD | WIMA | CAP FILM 2200PF 10% 1.5KVDC RAD | 91% | View |
| MKT1820222106 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2200PF 20% 1KVDC RADIAL | 89% | View |
| B32672L9222J000 | EPCOS - TDK Electronics | CAP FILM 2200PF 5% 2KVDC RAD | 82% | View |
| 150222K630BB | Cornell Dubilier Electronics (CDE) | CAP FILM 2200PF 10% 630VDC AXIAL | 82% | View |
| B32529C6222K000 | EPCOS - TDK Electronics | CAP FILM 2200PF 10% 400VDC RAD | 75% | View |
| B32529C3222K289 | EPCOS - TDK Electronics | CAP FILM 2200PF 10% 250VDC RAD | 65% | View |
Submit your RFQ for B32560J9222M000 and get a quote within 24 hours.
