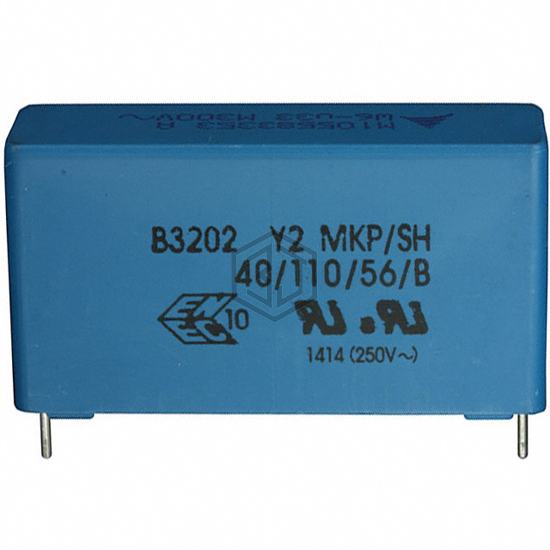

CAP FILM 0.68UF 20% 1.5KVDC RAD
B32026A3684M000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.68UF 20% 1.5KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage rating - dc 1500V (1.5kV), package / case Radial.
In Stock: 4,032
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.68 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | 1500V (1.5kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.634" L x 0.630" W (41.50mm x 16.00mm) |
| Height - Seated (Max) | 1.122" (28.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | Y2 |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R53BN368050S0M | KEMET | CAP FILM 0.68UF 20% 800VDC RAD | 89% | View |
| F339X146848MKI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 20% 1KVDC RADIAL | 88% | View |
| F1772SX246831MI0W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 10% 630VDC RAD | 88% | View |
| F861DI684J310Z | KEMET | .680UF 310V | 88% | View |
| 20912-06 | Iskra | KNB1560 U68 5% 275V L4 R22.5 CD | 87% | View |
| MKP385468040JII2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 5% 400VDC RADIAL | 76% | View |
Submit your RFQ for B32026A3684M000 and get a quote within 24 hours.
