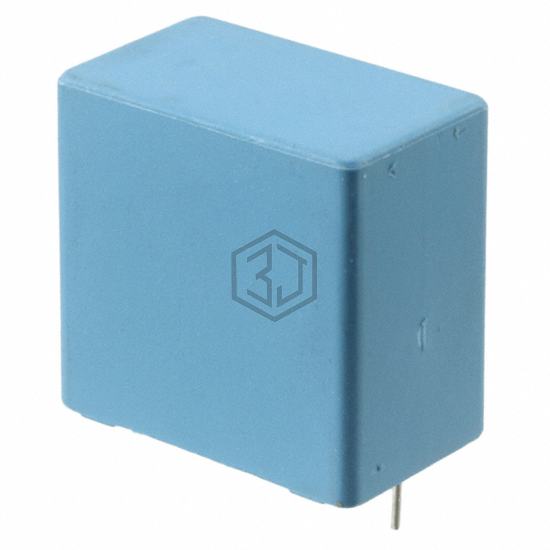

CAP FILM 0.68UF 20% 1.5KVDC RAD
B32024A3684M000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.68UF 20% 1.5KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage rating - dc 1500V (1.5kV), package / case Radial.
In Stock: 8,850
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.68 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | 1500V (1.5kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.748" W (31.50mm x 19.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | Y2 |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| F881FT684K300Z | KEMET | CAP FILM POLYPROP RAD Y2 | 94% | View |
| F1778468K3KCT0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 10% 630VDC RAD | 88% | View |
| F1772SX246831KKPT0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 10% 630VDC RAD | 88% | View |
| MKP1O136806J00JSSD | WIMA | CAP FILM 0.68UF 5% 1KVDC RAD | 85% | View |
| R46KR368050M1K | KEMET | CAP FILM 0.68UF 10% 560VDC RAD | 85% | View |
| MKP385468025JFI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 5% 250VDC RADIAL | 69% | View |
Submit your RFQ for B32024A3684M000 and get a quote within 24 hours.
