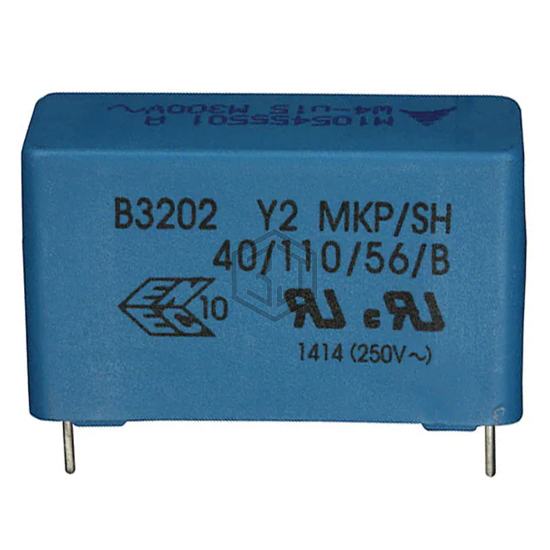

CAP FILM 0.56UF 20% 1.5KVDC RAD
B32024A3564M000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.56UF 20% 1.5KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage rating - dc 1500V (1.5kV), package / case Radial.
In Stock: 3,398
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.56 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | 1500V (1.5kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.630" W (31.50mm x 16.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | Y2 |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MPX564K305E | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.56UF 10% 305VAC RAD | 100% | View |
| ECQ-UAAF564M | Panasonic Electronic Components | CAP FILM 0.56UF 20% 275VAC RADIA | 98% | View |
| CMPX564K27AL225B-26.5X17.5X8.5 | Trigon Components | CMPX-X2 FILM CAP 0.56UF 10% | 98% | View |
| F17724562006 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.56UF 5% 630VDC RADIAL | 88% | View |
| R46KI356045N0M | KEMET | CAP FILM 0.56UF 20% 560VDC RAD | 85% | View |
| B32673P6564K000 | EPCOS - TDK Electronics | CAP FILM 0.56UF 10% 630VDC RAD | 82% | View |
Submit your RFQ for B32024A3564M000 and get a quote within 24 hours.
