TRANS GAN 100V .0022OHM 21BMPD

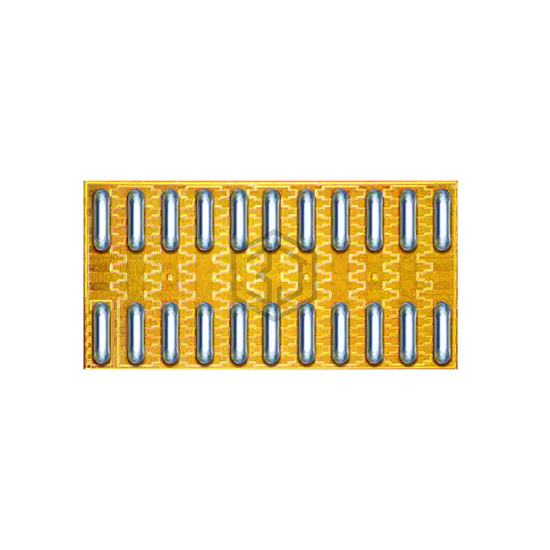

EPC2071 is a Transistors - FETs, MOSFETs - Single manufactured by EPC. TRANS GAN 100V .0022OHM 21BMPD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case Die.
In Stock: 1,128
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | GaNFET (Gallium Nitride) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 64A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Rds On (Max) @ Id, Vgs | 2.2mOhm @ 30A, 5V |
| Vgs(th) (Max) @ Id | 2.5V @ 13mA |
| Gate Charge (Qg) (Max) @ Vgs | 26 nC @ 5 V |
| Vgs (Max) | +6V, -4V |
| Input Capacitance (Ciss) (Max) @ Vds | 3931 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | Die |
| Package / Case | Die |
Submit your RFQ for EPC2071 and get a quote within 24 hours.
