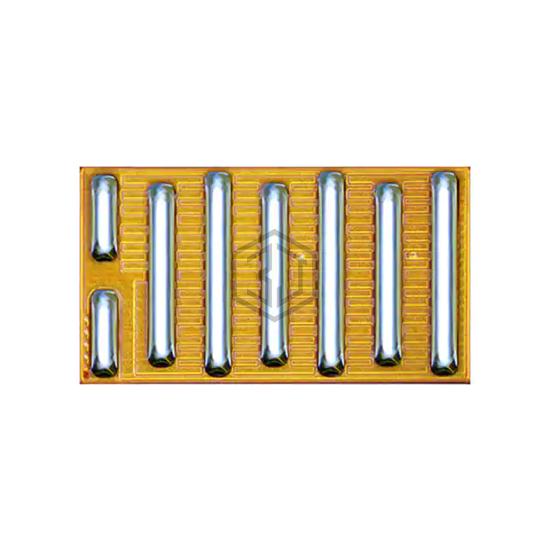

GAN FET 80V .0036OHM 8BUMP DIE
EPC2065 is a Transistors - FETs, MOSFETs - Single manufactured by EPC. GAN FET 80V .0036OHM 8BUMP DIE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case Die.
In Stock: 9,912
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | GaNFET (Gallium Nitride) |
| Drain to Source Voltage (Vdss) | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Rds On (Max) @ Id, Vgs | 3.6mOhm @ 25A, 5V |
| Vgs(th) (Max) @ Id | 2.5V @ 7mA |
| Gate Charge (Qg) (Max) @ Vgs | 12.2 nC @ 5 V |
| Vgs (Max) | +6V, -4V |
| Input Capacitance (Ciss) (Max) @ Vds | 1449 pF @ 40 V |
| FET Feature | Standard |
| Power Dissipation (Max) | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | Die |
| Package / Case | Die |
Submit your RFQ for EPC2065 and get a quote within 24 hours.
