AC/DC CONVERTER 5V 25W

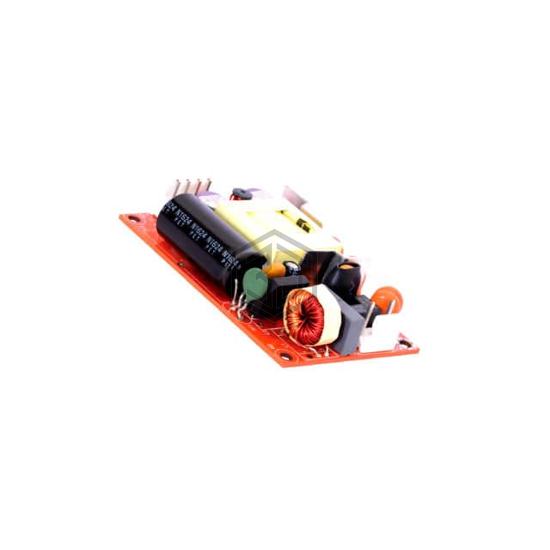

ULP40-1205 is a AC DC Converters manufactured by EOS Power. AC/DC CONVERTER 5V 25W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C (With Derating), voltage - input 85 ~ 264 VAC, 390VDC, size / dimension 3.00" L x 2.00" W x 0.97" H (76.2mm x 50.8mm x 24.7mm).
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC, 390VDC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 25W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 4.242 kV |
| Efficiency | 85% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.00" L x 2.00" W x 0.97" H (76.2mm x 50.8mm x 24.7mm) |
| Approval Agency | CB, CE, cUL, NEMKO, UL |
| Standard Number | - |
Submit your RFQ for ULP40-1205 and get a quote within 24 hours.
