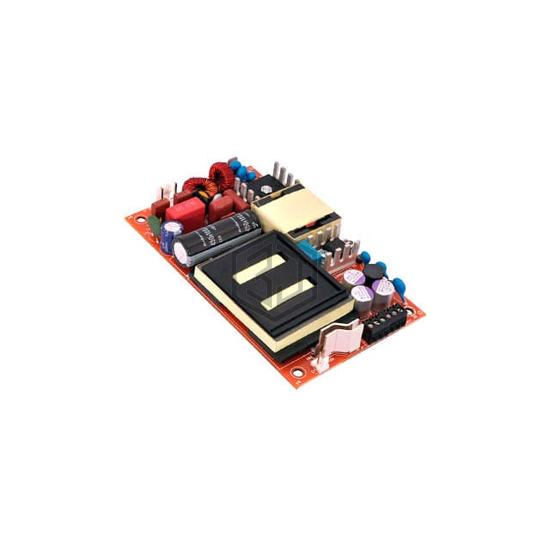

AC/DC CONVERTER 15V 160W
ULP275-1015 is a AC DC Converters manufactured by EOS Power. AC/DC CONVERTER 15V 160W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C (With Derating), voltage - input 80 ~ 264 VAC, 390VDC, size / dimension 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm).
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 264 VAC, 390VDC |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 10.66 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 160W (275W Forced Air) |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 88% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) |
| Approval Agency | CB, CE, cUL, NEMKO, UL |
| Standard Number | - |
